Basics of Electronics Training Stand MSEMP01

AutoEDU

Product number: MSEMP01

ASE category: A6

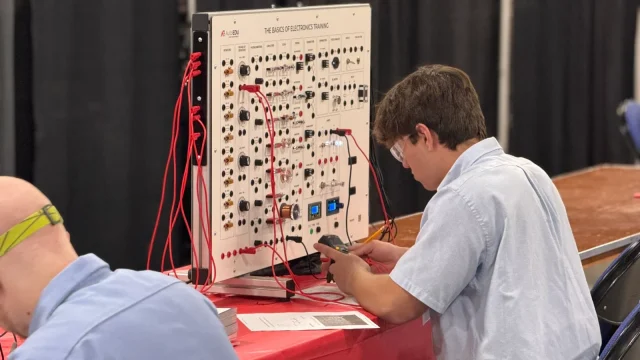

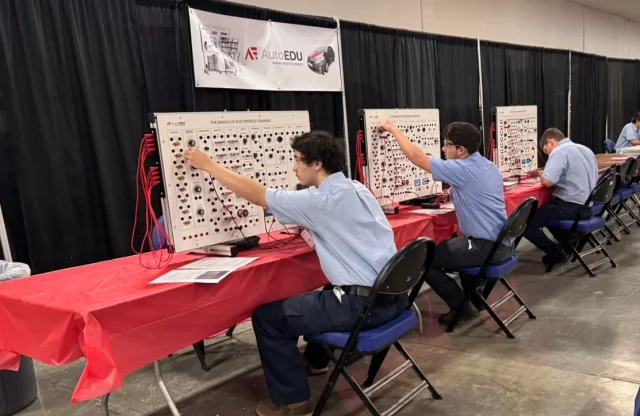

This training stand is designed to teach the fundamentals of electronics through practical measurement and testing. It features integrated components such as resistors, capacitors, coils, diodes, transistors, DC motor, and switches, providing students with hands-on opportunities to learn core principles. Equipped with a dedicated multimeter, it supports accurate measurements of various electrical values. The stand is mobile, lightweight, and offers versatile mounting options, making it suitable for diverse classroom setups.

Request a quote

Check our catalog and product data sheet

Download Catalogue

Data Sheet

Specifications

Resistors: Measures 1 Ω to 1 kΩ; adjustable decades from 100 Ω to 1 MΩ.
Potentiometers: Measures 1 kΩ to 100 kΩ.
Capacitors: Measures 10 nF to 10 µF.
Coils: Measures 4.7 µH to 10 mH.
Diodes: Tests rectifier, Schottky, Zener, LED, and photodiodes.
Transistors: Tests PNP, NPN, N-Channel, and P-Channel MOSFETs.
Switches: Includes manual and push-button switches.
Relays: Supports relay testing.
Lamps: Integrated for testing lighting circuits.
Phototransistors: Open measurement points for hands-on testing.
PWM: Includes high-power manual PWM driver.
Voltage regulator: Manual voltage control testing.
DC motor: Simulates motor operation with visual spinning.
Multimeter: Built-in for precise measurements.
Measuring wires: Includes 12 wires with a stand.
PJEZO signaler: Supports signal generation connections.

Features

Integrated resistors, capacitors, potentiometers, coils, and diodes for diverse measurement scenarios.
Built-in transistor testing for PNP, NPN, N-Channel, and P-Channel MOSFETs.
Manual switch, push button, and PJEZO signaler connection points for interactive circuit exploration.
DC motor simulation for learning correct wiring sequences and operational principles.
High-power PWM driver and manual voltage regulator for hands-on learning of advanced electrical techniques.
Removable multimeter provided with each stand for accurate and reliable measurements.
Lightweight, mobile design with both vertical and horizontal mounting options.

Value for Students

Learn to measure resistor values across ranges from 1 ohm to 1 kohm, and decades of resistors from 100 ohms to 1 Mohm using manual adjustments.
Gain hands-on experience with potentiometers, capacitors (10 nF to 10 µF), and coil inductance (4.7 µH to 10 mH) measurements.
Explore diode characteristics, including rectifier, Schottky, Zener, LED, and photodiodes, through practical connections and testing.
Understand transistor behavior with measurements of PNP, NPN, N-Channel, and P-Channel MOSFETs.
Perform relay tests, visualize DC motor operations, and connect manual switches and push buttons for circuit simulations.
Develop skills in using a multimeter for accurate diagnostics, eliminating the need for additional tools.
Learn how to integrate and operate various lamps and phototransistors for electrical circuit studies.
Explore pulse-width modulation (PWM) principles with manual high-power PWM drivers and voltage regulators.

Value for Instructors

Simplifies lesson planning with a comprehensive platform integrating multiple electrical components and measuring tools.
Provides hands-on training opportunities to improve student engagement and practical skills development.
Mobile and adaptable design enables seamless integration into various classroom setups.
Pre-equipped with 12 measuring wires and a dedicated multimeter, reducing preparation time and ensuring operational readiness.
Supports the teaching of advanced concepts such as PWM, voltage regulation, and DC motor simulations in a controlled and safe environment.
