Diesel CR Turbo Engine Educational Trainer VIVV01-RHX

AutoEDU

Product number: VIVV01-RHX

ASE category: A1

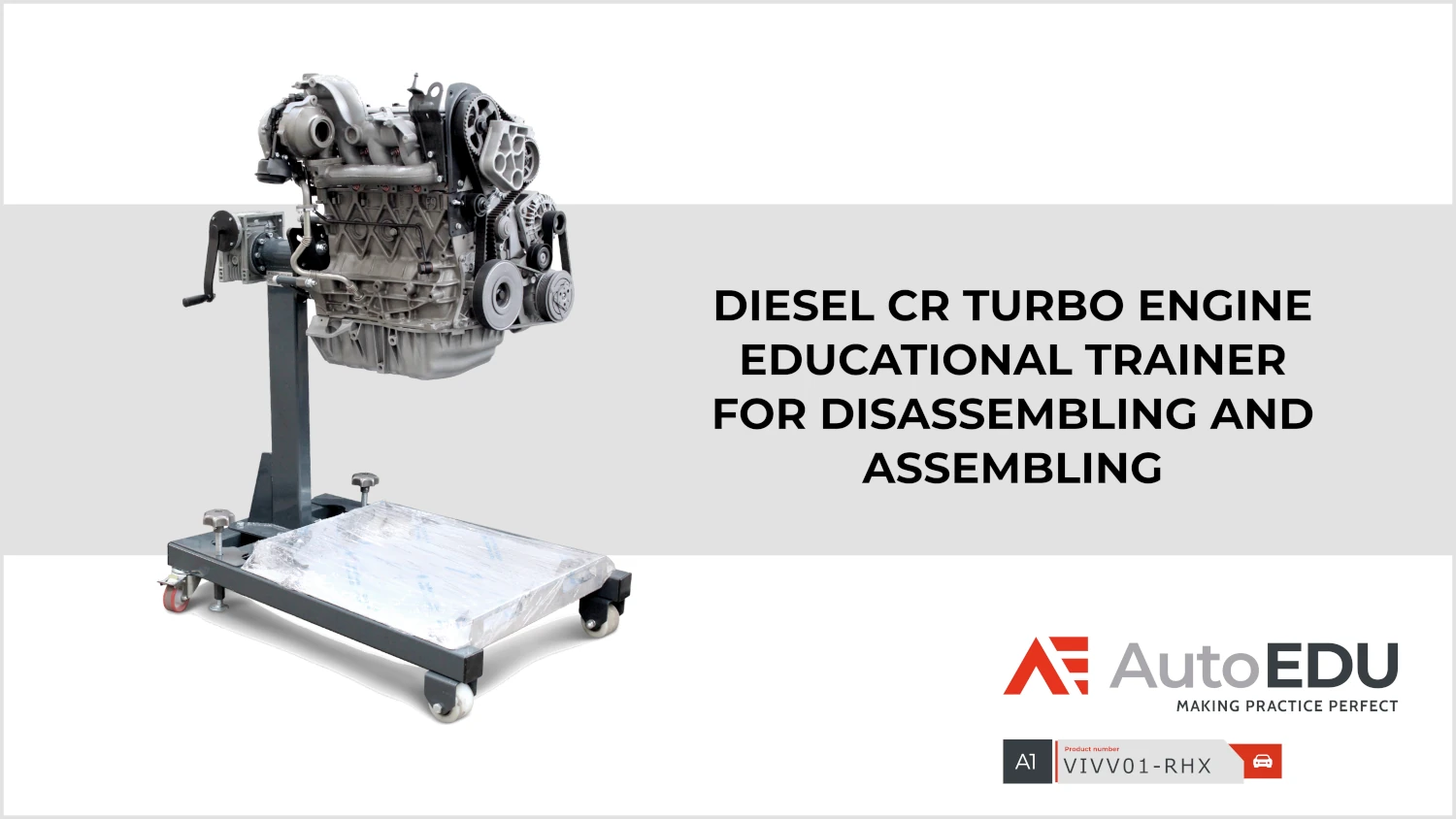

Trainer for disassembling and assembling for CR-type diesel engine with a turbocharger, mounted on a manually rotating stand for 360° access. It features a complete timing and auxiliary belt system and is equipped with a mobile base on four castors for easy movement during disassembling or assembly.

Request a quote

Check our catalog and product data sheet

Download Catalogue

Data Sheet

Features

Based on OEM car engine equipped with a CR-type fuel supply system and a turbocharger.
Engine mounted on a manually operated stand with 360° rotation using worm and wheel gearboxes for comprehensive visibility and access.
Equipped with four castors for easy movement and repositioning in the classroom or workshop.
Complete system for practical demonstration of timing and auxiliary belt operations.
Engine is presented without wiring diagrams or sensors to focus on mechanical and assembly aspects.

Value for Students

Engage with a fully functional CR-type diesel engine, gaining practical experience with the turbocharged system and the Common Rail fuel supply, which provides insights into high-pressure direct fuel injection systems and their operational benefits.
Develop technical skills by performing detailed engine assembly and disassembly. Understanding the engine’s internal components, such as pistons, crankshaft, camshaft, and turbocharger, enhances comprehension of engine mechanics and repair techniques.
Learn about engine timing and auxiliary belt systems, including their roles in engine synchronization and operation. This knowledge is crucial for ensuring engine performance and reliability.
Study the working principles of the turbocharger and its impact on engine efficiency and power output. The CR system’s high-pressure injection and its influence on combustion efficiency are key learning points.
Understand the interplay between various engine components and systems, focusing on how the CR fuel system and turbocharger interact to improve engine performance and fuel efficiency.

Value for Instructors

Training Tool offers a realistic and detailed engine trainer for teaching OEM diesel engine mechanics, including turbocharging and CR fuel systems.
The 360° rotating stand allows for versatile and accessible demonstration angles, making it easier to illustrate complex engine assembly and disassembly processes.
With its mobile base and castors, the trainer can be easily repositioned within the classroom or workshop, supporting dynamic and interactive teaching methods.
Provides a hands-on approach to learning, allowing students to gain practical experience with engine components and systems in a controlled and safe environment.

Specifications

Dimensions: to be specified based on the exact model configuration.
Weight: to be specified based on the exact model configuration.
