Hydraulic shock absorber cutaway Educational Trainer AE410636

AutoEDU

Product number: AE410636

ASE category: A4

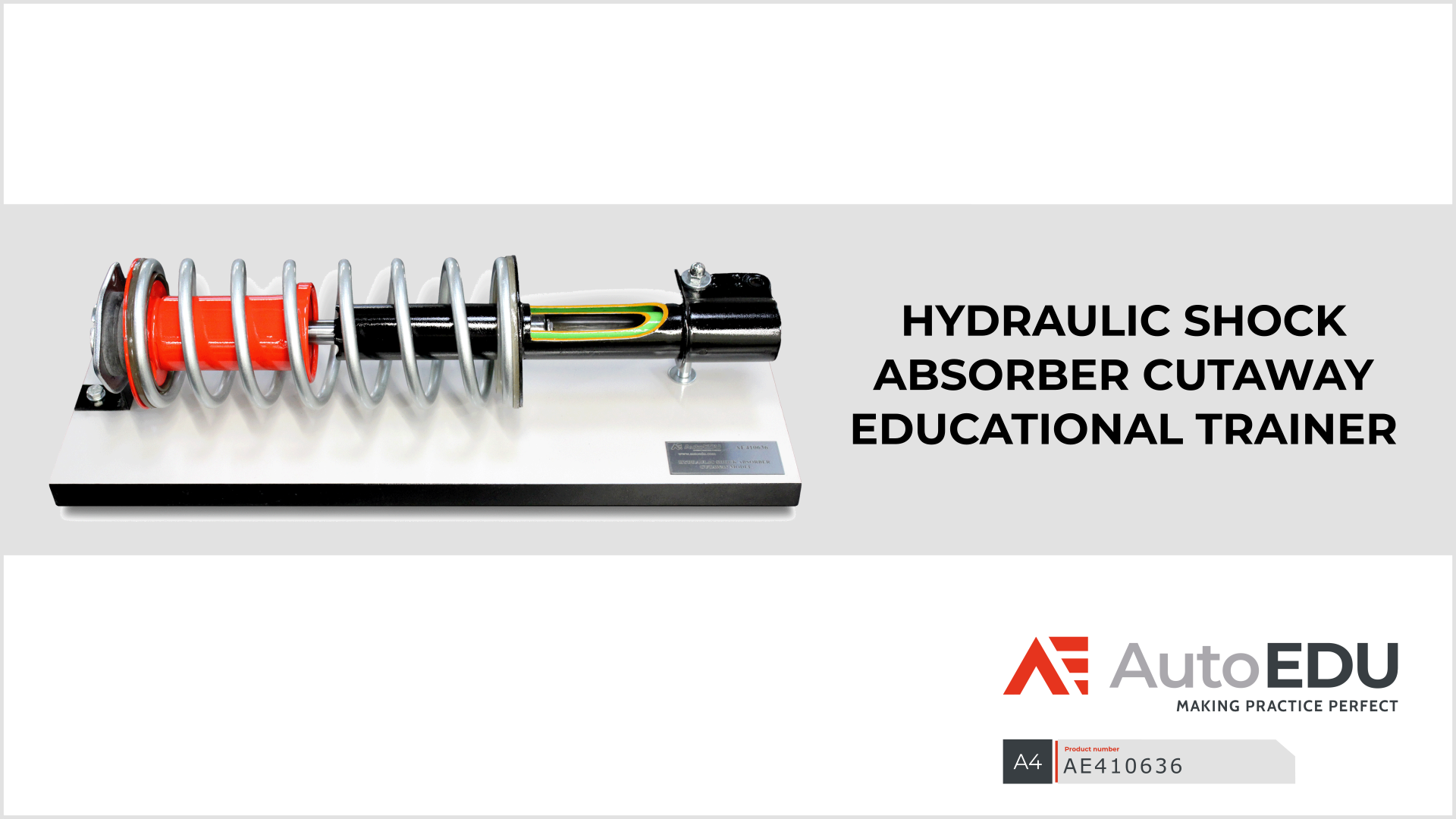

Detailed McPherson-type shock absorber model designed for automotive training. This trainer features a complete damper spring and a cutaway view that exposes internal components such as hydraulic fluid pathways, pistons, and gas chambers. It effectively illustrates the working principles of both twin-tube and mono-tube shock absorbers, showcasing damping mechanisms, including basic and gas-charged designs. This educational tool is mounted on a stable base, providing a clear and interactive platform for understanding shock absorber functionality and its impact on vehicle handling.

Request a quote

Check our catalog and product data sheet

Download the Full AutoEDU Product Catalogue

Enter your details to receive the AutoEDU catalogue with automotive training systems, laboratory equipment, technical specifications, and solutions for universities, technical colleges, and training centers.

I agree to the processing of my personal data in accordance with the Privacy Policy.

Features

McPherson type includes a complete damper spring for accurate representation of shock absorber configurations.
Cutaway design provides a clear view of internal components such as the hydraulic fluid pathways, pistons, and gas chambers.
Shows damper operational scenarios including slow adjustments, fast drive conditions, and cavitation effects.
Mounted on a stable base to facilitate easy observation and handling.

Value for Students

Gain hands-on experience with the hydraulic shock absorber mechanism, learning how it dampens kinetic energy and smooths out shock impulses. Study the interaction between the internal piston, check valves, and oil flow.
Learn about specific components like the working piston, dividing piston, and reserve tube. Understand the differences between basic and gas-charged twin-tube shock absorbers, and their effects on vehicle handling and ride quality.
Observe and analyze how shock absorbers manage various operational situations, such as slow drive adjustments and fast drive conditions, including phenomena like cavitation and gas foaming.
Understand how shock absorbers work in conjunction with coil springs, leaf springs, and torsion bars to manage vehicle suspension and ensure wheel adherence on irregular surfaces.
Interact with a cutaway model to see the internal components clearly, including the hydraulic fluid pathways, piston movements, and gas chambers.

Value for Instructors

Utilize the trainer to demonstrate the principles of hydraulic shock absorbers effectively, providing a clear visual aid for explaining complex mechanical concepts.
The cutaway design allows students to observe and understand internal mechanisms, facilitating a more thorough comprehension of shock absorber operation and its impact on vehicle dynamics.
Incorporate the trainer into practical lessons to show real-world applications of shock absorber technology, including adjustments for different driving conditions and the effects on vehicle handling.
The trainer is mounted on a base for stability, making it easy to integrate into classroom settings and ensuring that students can view and interact with the model safely and comfortably.

Specifications

Dimensions: 650 x 250 x 200 mm (25.59 in×9.84 in×7.87 in)
Weight: 8 kg (17 lb)
Product number: AE410636
