LPG fuel circuit cutaway AE410520S

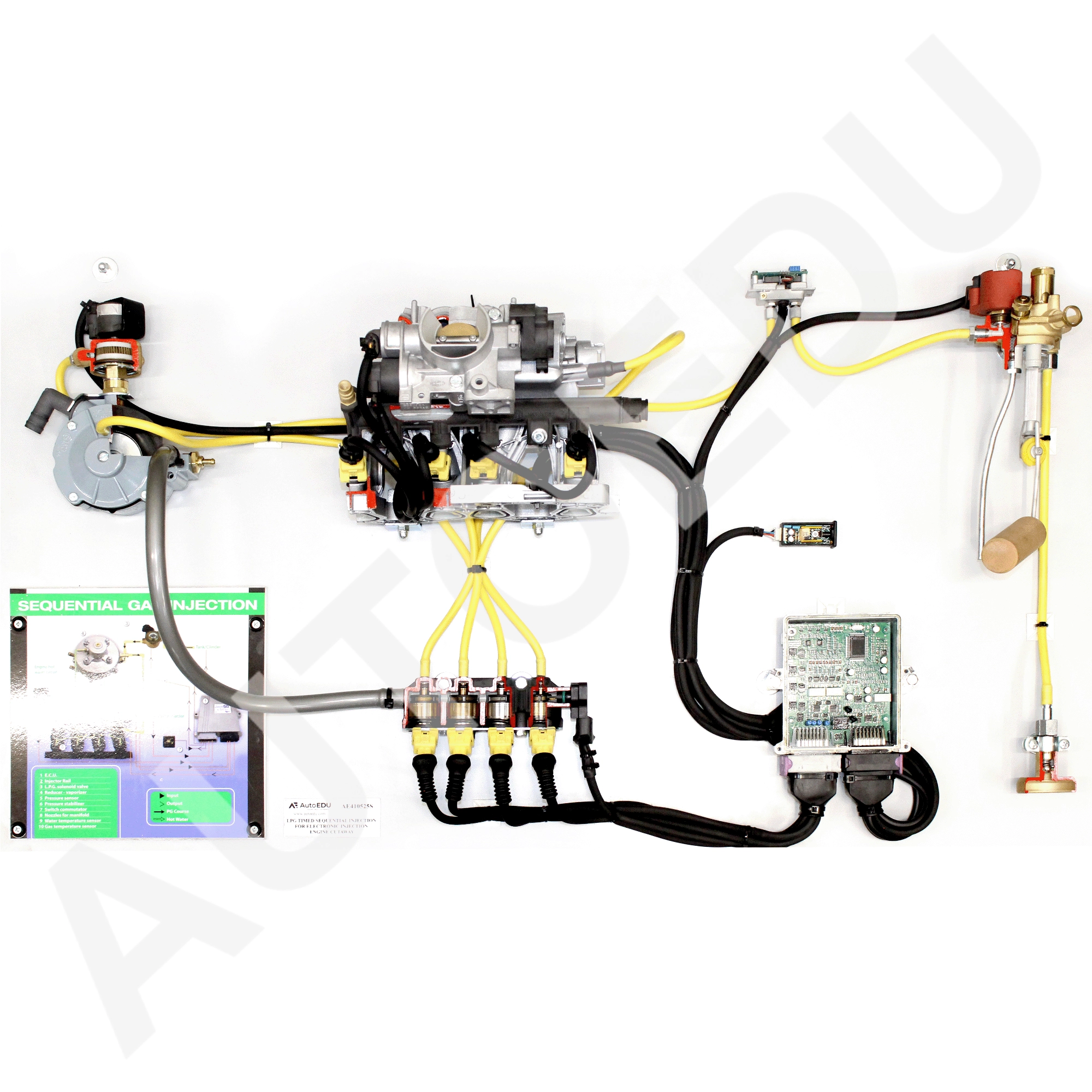

Educational training aid for automotive LPG fuel system demonstration. This static trainer represents a full LPG fuel circuit layout with core components: LPG tank with level gauge and filler plug, LPG and petrol (gasoline) solenoid valves, vaporizer-reduction gear, and single-body carburetor. The system is mounted on a robust base with all connections visible. Designed specifically for vocational and technical automotive education, it provides a detailed static representation of fuel flow and component structure for LPG-powered vehicles.

• System type: Static LPG fuel circuit trainer with cutaway components.
• Included components: Filler plug, level gauge, LPG tank, LPG and petrol (gasoline) solenoid valves, vaporizer-reduction gear, single-body carburetor.
• Weight: 12 kg (26.5 lbs).
• Dimensions: 800 × 500 × 400 mm (31.5 × 19.7 × 15.7 in)
• Product number: AE410520S

• Learn the layout and function of a complete LPG fuel circuit.
• Understand the role and working principle of the LPG vaporizer-reduction gear.
• Identify key LPG components: tank, filler plug, level gauge, solenoid valves, and carburetor.
• Analyze fuel changeover mechanisms between petrol (gasoline) and LPG using solenoid valve operation.
• Study the mechanical structure of the carburetor in a static model.
• Explore fuel line connections and flow sequence from tank to engine.
• Observe cutaway sections of components to understand internal structures.

• Clear and complete static layout for classroom demonstrations.
• Enables theoretical and visual explanation of alternative fuel systems.
• Facilitates student understanding of dual-fuel systems with simplified design.
• Compact, maintenance-free setup ideal for repetitive use in automotive learning sessions.
