Continuously Variable Transmission (CVT) Cutaway Educational Trainer AE411068M

AutoEDU

Product number: AE411068M

ASE category: A2

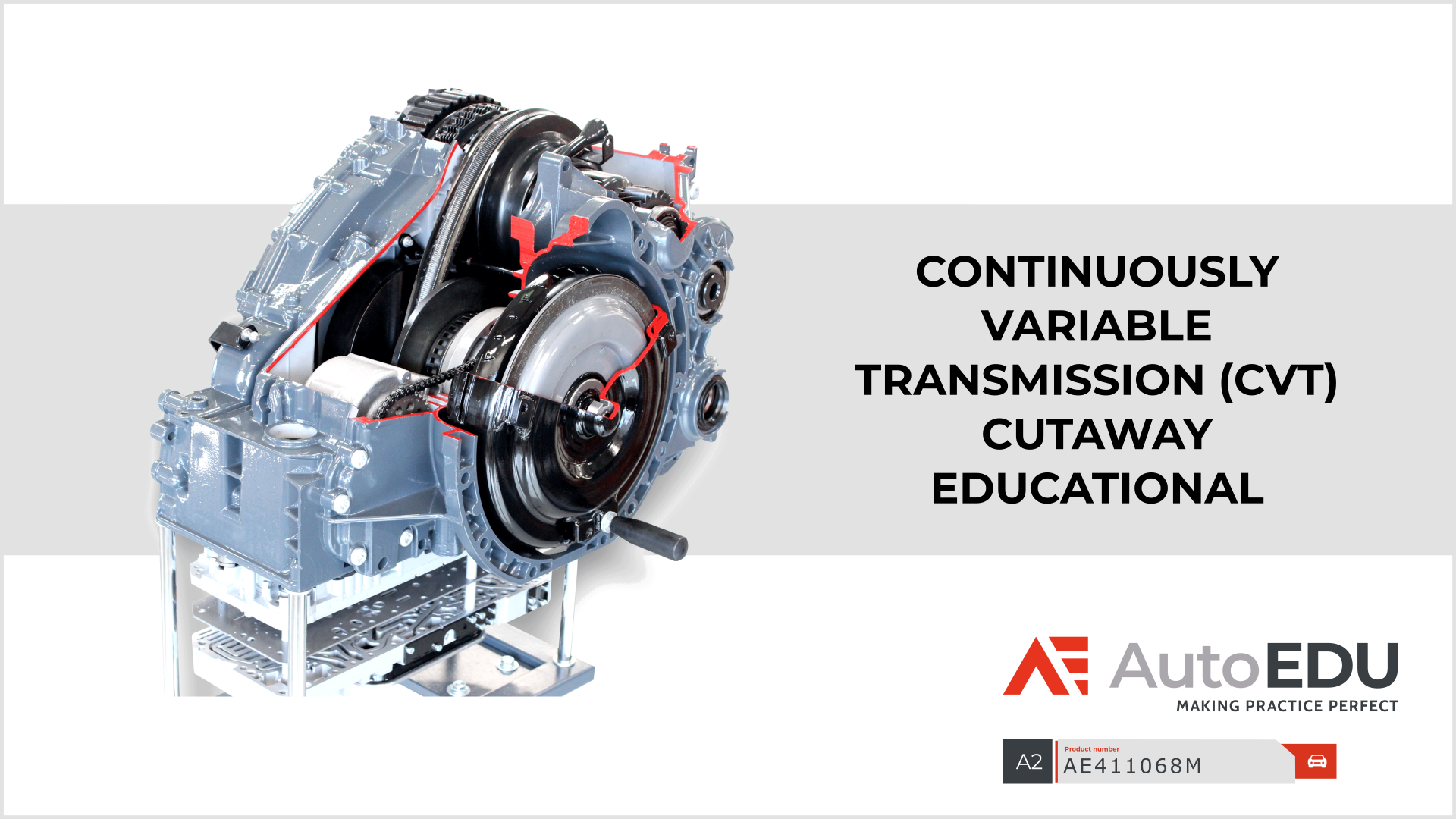

Detailed view of CVT internals, showcasing essential components including the V-belt pulleys, belt, and hydraulic control mechanisms. This trainer is manually operated via a handwheel, allowing precise adjustments and observations of gear ratio changes in real-time. Mounted on a stable stand with a wheel, it facilitates practical demonstrations and interactive learning.

Request a quote

Check our catalog and product data sheet

Download Catalogue

Data Sheet

Features

Exposes internal components of the CVT, including V-belt pulleys and the transmission mechanism, for enhanced visibility and understanding.
Features a handwheel for adjusting gear ratios, allowing students to observe the impact of changes in real-time.
Includes a stable stand with a wheel for easy placement and movement in educational settings.
Enables practical engagement with the transmission system, facilitating a deeper grasp of CVT principles and mechanics.

Value for Students

Study the continuous range of gear ratios provided by the V-belt pulleys, which can vary from maximum to minimum values without discrete gear steps. This feature demonstrates the seamless transition between gear ratios in real-world applications.
Operate the manual handwheel to observe the direct effects on the gear ratios, enhancing comprehension of how input adjustments influence transmission performance.
Gain insight into the function of each component within the CVT system, including the V-belt, pulleys, and the transmission’s hydraulic control mechanisms. Understand how these components interact to maintain optimal engine performance and fuel efficiency.
Learn about the fundamental principles of automatic transmissions, including the role of variable pulley diameters and belt tension in adjusting transmission ratios to match driving conditions.

Value for Instructors

Uses OEM components for easy, safe, and realistic training that mimics real car.

Utilize the cutaway design to clearly demonstrate the internal workings of a CVT, making complex concepts more accessible to students. The manual operation feature allows for real-time adjustments and explanations.
The trainer is mounted on a robust stand with a wheel, ensuring stability during demonstrations and ease of mobility within the classroom or training environment.
Provides a hands-on learning experience that complements theoretical instruction, enabling students to directly observe and interact with the transmission system’s components and their functions.

Specifications

Dimensions: 600 x 500 x 800 (23.62 x 19.68 x 31.5 inch)
Weight: approx. 40 kg (88 lb)
Product number: AE411068M
