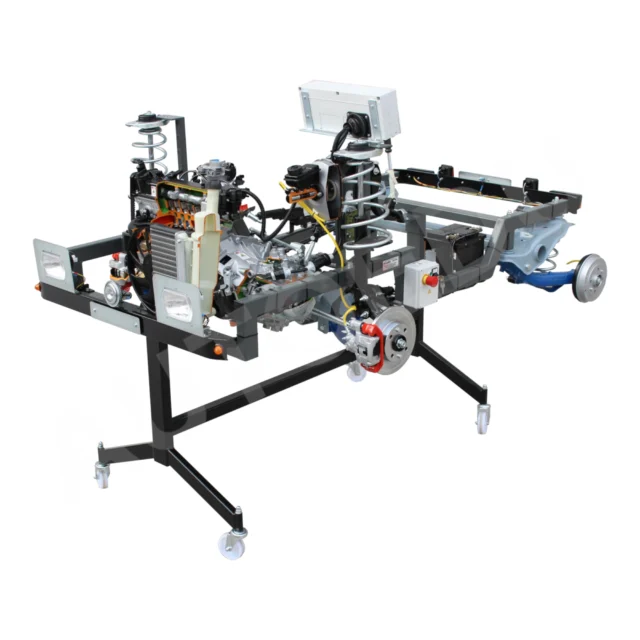

FIAT Turbo Diesel Chassis With Front Drive Cutaway AE36175E

Highly detailed automotive training equipment based on a front-wheel-drive FIAT chassis. Includes a 1700 cc, 4-cylinder diesel engine with indirect injection and Bosch VE rotary injection pump. Integrated with turbo-compressor featuring waste-gate valve and 5-speed gearbox with reverse and differential. System includes hydraulic power steering, McPherson front suspension, rear independent suspension, full braking system, and functional front and rear lighting controlled by dashboard switches. Mounted on a heavy-duty frame with wheels.

• Engine type: 4-cylinder diesel, indirect injection.
• Displacement: 1700 cc.
• Fuel system: Bosch VE rotary pump.
• Turbo system: Turbocharger with waste-gate valve.
• Transmission: 5-speed + reverse gearbox with differential.
• Steering: Hydraulic power with double-jointed column.
• Brakes: Front disc, rear drum.
• Suspension front: McPherson with oscillating arms.
• Suspension rear: Independent with coil springs and gas shock absorbers.
• Cooling: Radiator with electric fan.
• Electrical system: Front and rear lights operated via dashboard switch.
• Operation: Electric motor, 230 V (110V US) reduced speed.
• Frame: Stand with wheels.
• Weight: 400 kg (881.8 lbs).
• Dimensions: 2200 x 1600 x 1150 mm (86.61 x 62.99 x 45.28 in).
• Product number: AE36175E

• Understand diesel engine operation with indirect injection and pre-chamber combustion.
• Study Bosch VE rotary injection pump function and layout.
• Observe turbocharger working principle with integrated waste-gate valve.
• Learn how power transmission flows through the 5-speed gearbox and differential.
• Explore hydraulic power steering system with double-jointed steering column.
• Identify components and operation of radiator with electric fan and cooling system circuit.
• Examine braking system: front disc and rear drum brake function.
• Visualize front McPherson suspension movement and structure.
• Understand rear suspension system with coil spring and gas shock absorbers.
• Learn layout and function of lubricating, fuel, and cooling circuits through color-coded cross-sections.
• Practice technical observation of engine rotation at reduced electrical speed.
• Identify sectioned mechanical systems visually using professional paint markings.
• Operate and observe real front and rear lighting systems via dashboard control.

• Easy to demonstrate mechanical systems during lessons.
• Enables real-time observation of engine and drivetrain operation at safe speeds.
• Ideal for visual learning in automotive education environments.
• Provides reliable tool for explaining diesel combustion, power transmission, suspension, and steering.
• Functional lighting system adds value in teaching vehicle electrical circuits and lighting components.
• Suitable for use in vocational schools, colleges, and training centers.
• Durable construction for long-term use and repeated student interaction.
• Includes all essential automotive systems in one complete structure.
• Color-coded and galvanized components aid visual understanding and maintenance.
