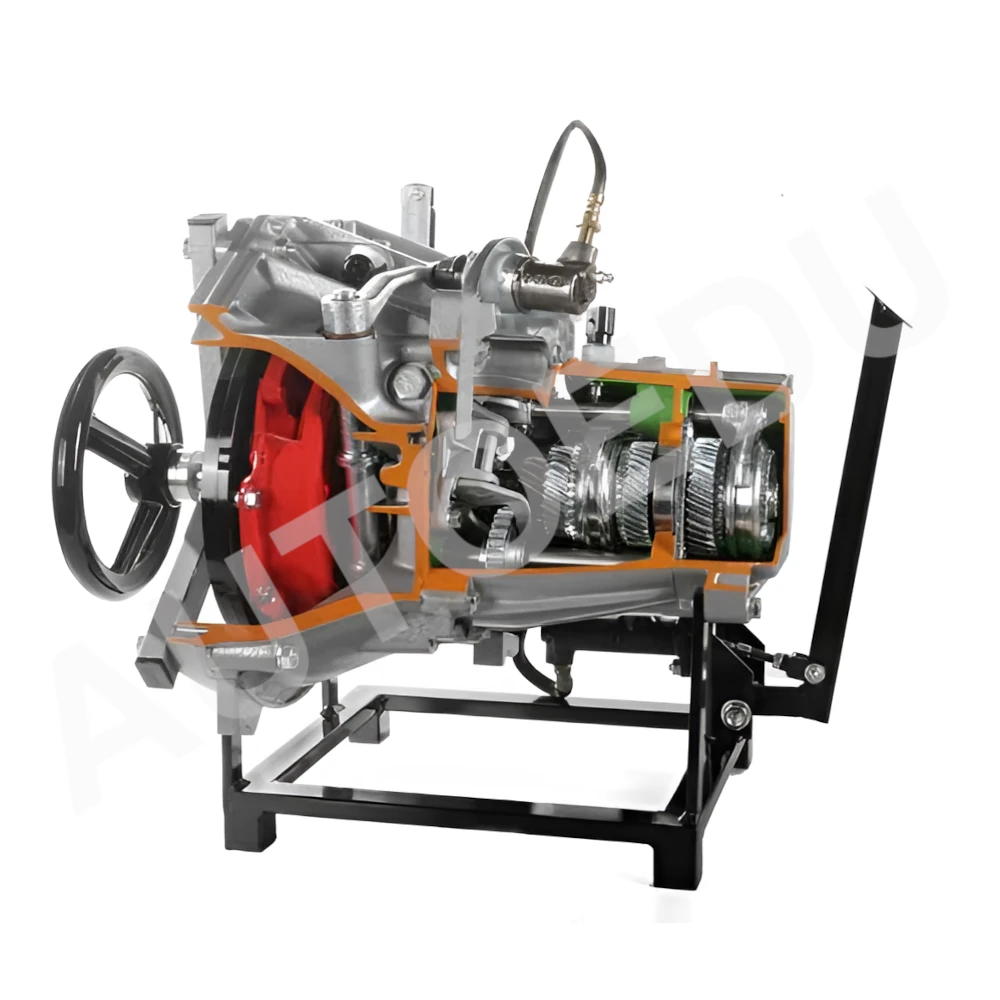

Gearbox 6-speed With Differential Cutaway AE411006M

Manual gearbox cutaway trainer mounted on a mobile steel stand. Demonstrates a complete 6-speed manual transmission system with integrated differential. Operated by a hand wheel to show internal gear movement and differential operation. Transparent cut sections expose gear sets, shafts, and synchronization mechanisms.

• Gearbox type: 6-speed manual with reverse.
• Operation: Manual by hand wheel.
• Transmission type: Synchromesh gear system.
• Differential type: Open differential.
• Frame: Welded steel with caster wheels.
• Weight: 40 kg (88.18 lbs).
• Dimensions: 700 × 700 × 800 mm (27.56 × 27.56 × 31.50 in).
• Product number: AE411006M

• Learn gear ratio principles by rotating the hand wheel and observing 6 forward gears and 1 reverse gear in motion.
• Understand the function and operation of a manual transmission including input shaft, output shaft, gear synchronizers, shift forks, and gear selectors.
• Explore the internal structure and working principle of an integrated open differential.
• Visualize power flow from engine input to driven wheels through gear selection and differential output.
• Observe the effect of differential action when turning – how torque is split between wheels.
• Practice identifying transmission components, gear sets, synchronizer rings, and differential gears.

• Easy manual operation through hand wheel allows controlled demonstration of transmission and differential principles.
• Ideal for automotive education classes to explain complex drivetrain concepts in a visual, safe way.
• Transparent cutaway sections support step-by-step explanations of gear engagement and torque transfer.
• Stable mobile stand allows flexible classroom use and easy transport between training spaces.
• No external power required – safe and reliable tool for beginner to intermediate automotive training.
• Suitable for practical teaching in vocational schools, technical colleges, and automotive training centers.
