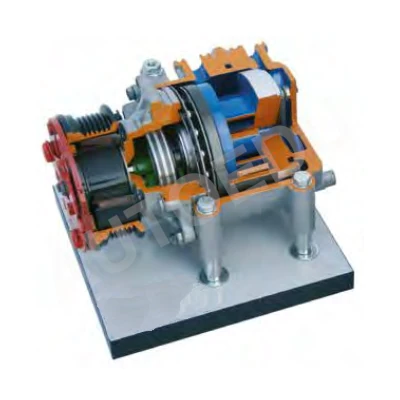

Rotary Scroll Compressor Cutaway Educational Model AE410654M

AutoEDU

Product number: AE410654M

Cutaway educational model featuring a real rotary scroll compressor unit, precision sectioned to reveal internal components and operating principles. Designed for automotive education and professional technical training. The cutaway exposes the scroll elements, bearings, suction and discharge chambers, motor windings, and oil lubrication paths. Mounted on a sturdy metallic base, ideal for demonstrating compressor operation in air conditioning systems and automotive applications.

Request a quote

Check our catalog and product data sheet

Download Catalogue

Features

Real rotary scroll compressor cutaway.
Visible orbiting and stationary scroll elements.
Exposed electric motor and internal drive system.
Clearly shown suction, compression, and discharge zones.
Mounted on stable metallic base plate.
Suitable for visualizing dynamic compression process.
High-quality finish for professional automotive learning.

Specifications

Product type: Rotary scroll compressor cutaway model.
Structure: Original compressor with sectioned view.
Working principle: Positive displacement via orbiting scroll motion.
Dimensions: 200 x 200 x 200 mm (7.87 x 7.87 x 7.87 in).
Weight: 6 kg (13.23 lbs).
Product number: AE410654M

Value for Students

Understand working principle of scroll compression: continuous, smooth, and pulse-free air compression.
Observe scroll elements: fixed and orbiting scrolls interaction.
Analyze suction and discharge chambers design.
Study oil lubrication circuit and bearing arrangements.
Identify electric motor components and winding structure.
Learn heat exchange and refrigerant compression fundamentals.
Practice technical vocabulary and compressor system layout.
Strengthen knowledge about HVAC systems in automotive engineering.

Value for Instructors

Clear demonstration of compressor internal working parts.
Safe and stable model for classroom and laboratory training.
Effective teaching aid for explaining HVAC system principles.
Enhances visual and practical understanding of compressor operation.
Suitable for basic and advanced automotive air conditioning courses.
Robust construction ensures long-term use in intensive educational environments.
