Self-locking Hypoid Differential Cutaway AE411260M

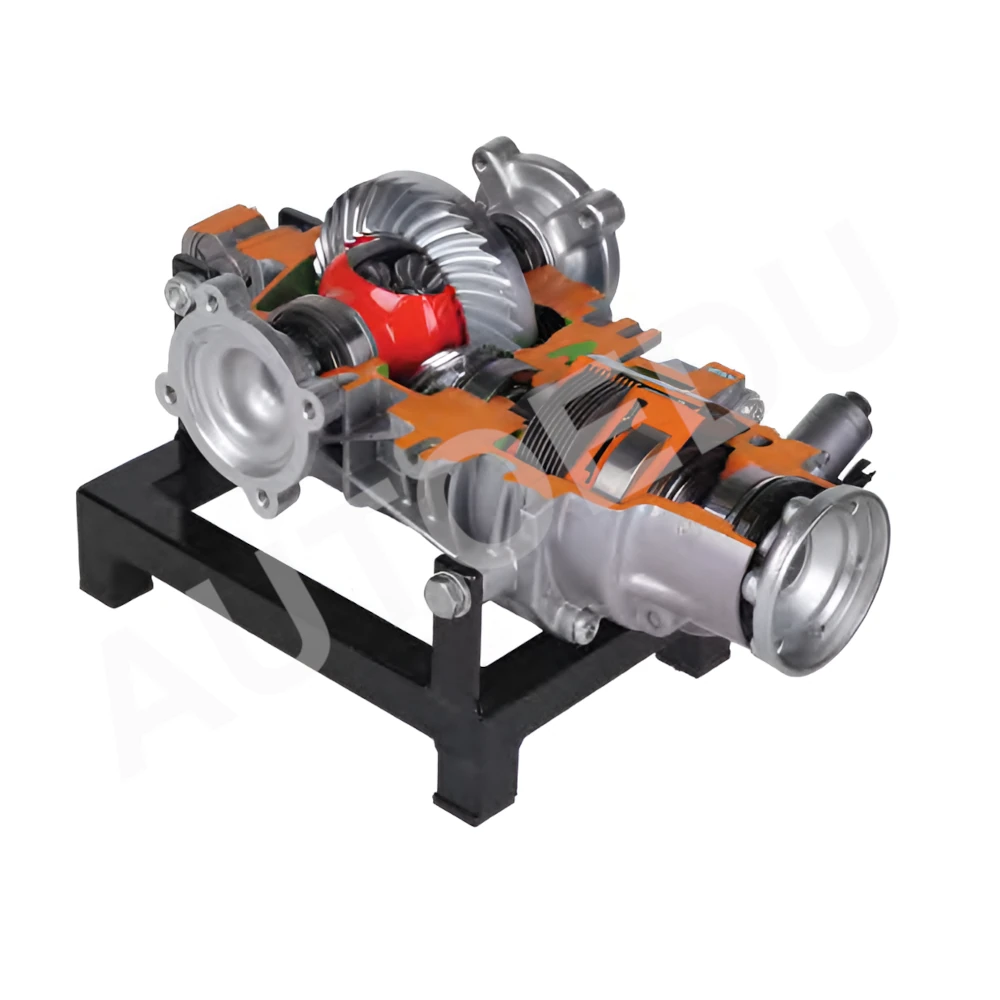

Fully operational cutaway model showcasing a self-locking hypoid differential, mounted on a sturdy table stand. This model includes a precise cross-section of a hypoid bevel gear pair, providing insight into the self-locking mechanisms and gear interaction. Designed for an in-depth study of differential operation, it allows trainees to explore OEM internal components.

• Product type: Self-locking hypoid differential cutaway.
• Components: Hypoid bevel gear pair, self-locking mechanism, differential case, spider gears.
• Operation: Manual simulation only, no powered input.
• Teaching level: Beginner to advanced drivetrain and transmission training.
• Dimensions: 400 x 300 x 400 mm (15.75 x 11.81 x 15.75 in).
• Weight: approx. 25 kg (55 lb).
• Product number: AE411260M.

• Learn the mechanics behind power transmission in self-locking hypoid differentials, including how torque is distributed to wheels based on traction needs.
• Explore the interaction of hypoid bevel gears, focusing on the reduction ratio and efficiency.
• Understand the self-locking feature and how it works for traction, mostly in slipping wheels conditions.
• Increase experience with open gear inspections, component analysis, and get to know the gear meshing process.

• Realistic, OEM components based demonstration of hypoid differentials. Explain of torque distribution principles in automotive field.
• Simple exposing of key components for understanding, students will fully understand how hypoid and self-locking operating.
• Teach theoretical and practical power distribution aspects for more dynamic and engaging teaching process.
• Easy to integrate into various classrooms or workshops due to its mobile, space saving and stable design. Allows concurrent use by multiple students.
