Single-stage Main Brake with Pedal Cutaway AE412304M

AutoEDU

Product number: AE412304M

ASE category: A5

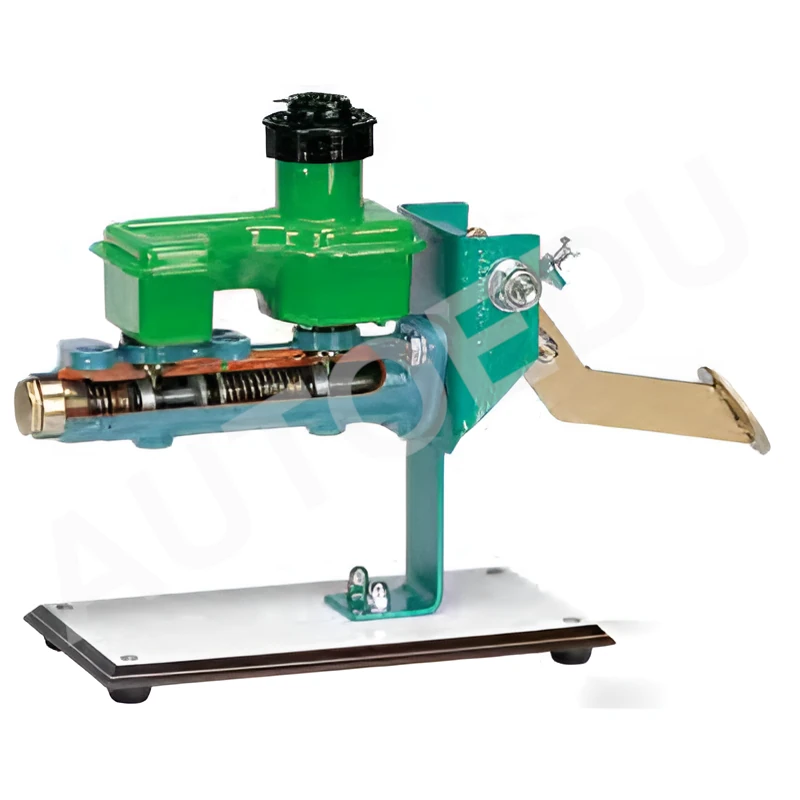

Cutaway of single-stage brake master cylinder.
Integrated brake pedal linkage for real-world movement simulation.
Exposed piston, cylinder bore, and spring components.
Fluid reservoir with cap for visual training.
Stable metal stand with display platform.
Manual pedal actuation for pressure displacement explanation.

Request a quote

Check our catalog and product data sheet

Download the Full AutoEDU Product Catalogue

Enter your details to receive the AutoEDU catalogue with automotive training systems, laboratory equipment, technical specifications, and solutions for universities, technical colleges, and training centers.

I agree to the processing of my personal data in accordance with the Privacy Policy.

Description

Compact, static training aid featuring a cutaway of a single-stage main brake master cylinder with mechanical brake pedal linkage. Constructed on a robust metal base with stable fixing points. Clearly displays internal hydraulic cylinder structure, piston, return spring, and fluid reservoir. Suitable for mechanical and hydraulic brake system training in automotive education.

Specifications

Product type: Single-stage brake master cylinder trainer.
Working principle: Hydraulic pressure via manual pedal input.
Components: Piston, return spring, fluid reservoir, pedal.
Weight: 1 kg (2.2 lbs).
Dimensions: 350 × 150 × 250 mm (13.78 × 5.91 × 9.84 in).
Product number: AE412304M

Value for Students

Learn the construction and working principle of a single-stage hydraulic master cylinder.
Observe internal hydraulic components such as piston, cylinder, and return spring.
Understand brake fluid movement under pedal force.
Study fluid displacement in response to pedal input.
Practice visual inspection of common wear and failure points.
Identify brake fluid reservoir connection to hydraulic circuit.
Learn function of return spring and master cylinder bore sealing.
Understand real-world application of hydraulic laws in braking.

Value for Instructors

Simplifies explanation of hydraulic braking system with physical cutaway.
No electrical power or fluids needed, ensuring safety in classrooms.
Durable and compact structure allows for easy transport and display.
Useful for demonstration of basic brake hydraulic theory.
Allows real-time explanation of pressure transfer through brake fluid.
Enhances visual learning and group demonstrations.
