Description

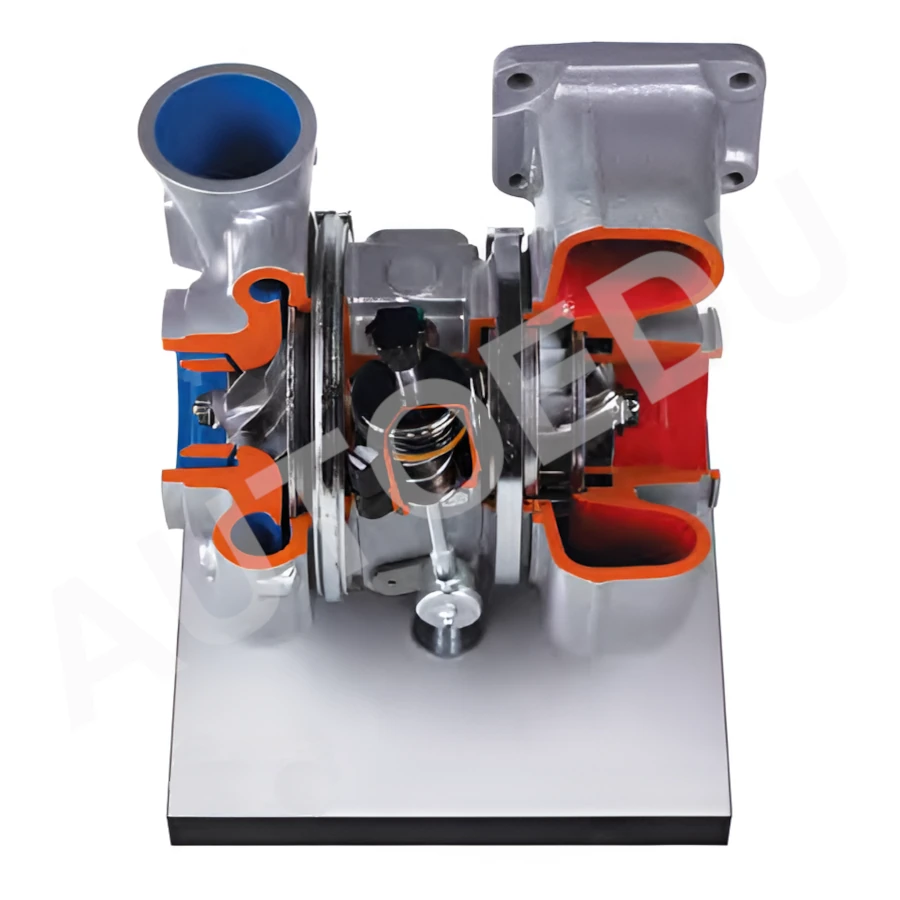

Cutaway turbocharger trainer designed for automotive education purposes. Based on a Holset variable geometry turbocharger used in heavy-duty truck diesel engines. Features cross-sectional view of all main components including turbine housing, compressor housing, rotating assembly, actuator, vanes, and control mechanism.

Specifications

Type: Holset variable geometry turbocharger (VGT).
Application: Diesel truck engines.
Weight: 26 kg (57.32 lbs).
Dimensions: 450 x 450 x 450 mm (17.72 x 17.72 x 17.72 in).
Product number: AE410453S

Value for Students

Understand variable geometry turbocharger (VGT) operating principle.
Learn how vanes inside turbine housing adjust to optimize boost pressure.
Study cross-section of turbine wheel, compressor wheel, bearing housing.
Visualize exhaust gas flow, pressure control, and variable vane adjustment.
Learn actuator function and boost control mechanisms in diesel engines.
Identify and name turbocharger components such as wastegate (if present), rotating assembly, and oil inlet/outlet paths.
Develop basic diagnostic knowledge of VGT systems used in modern truck engines.

Value for Instructors

Demonstrates internal construction of modern turbocharger clearly.
Provides safe, non-operational model for hands-on learning without risks.
Suitable for lessons on diesel engine performance and emissions control.
Helps explain airflow principles and turbocharging effect on engine output.
Clear cutaway allows easy visualization during theoretical and practical classes.
Compact and transportable unit fits into various classroom setups.
