Crown And Pinion Differential Group Cutaway AE411281S

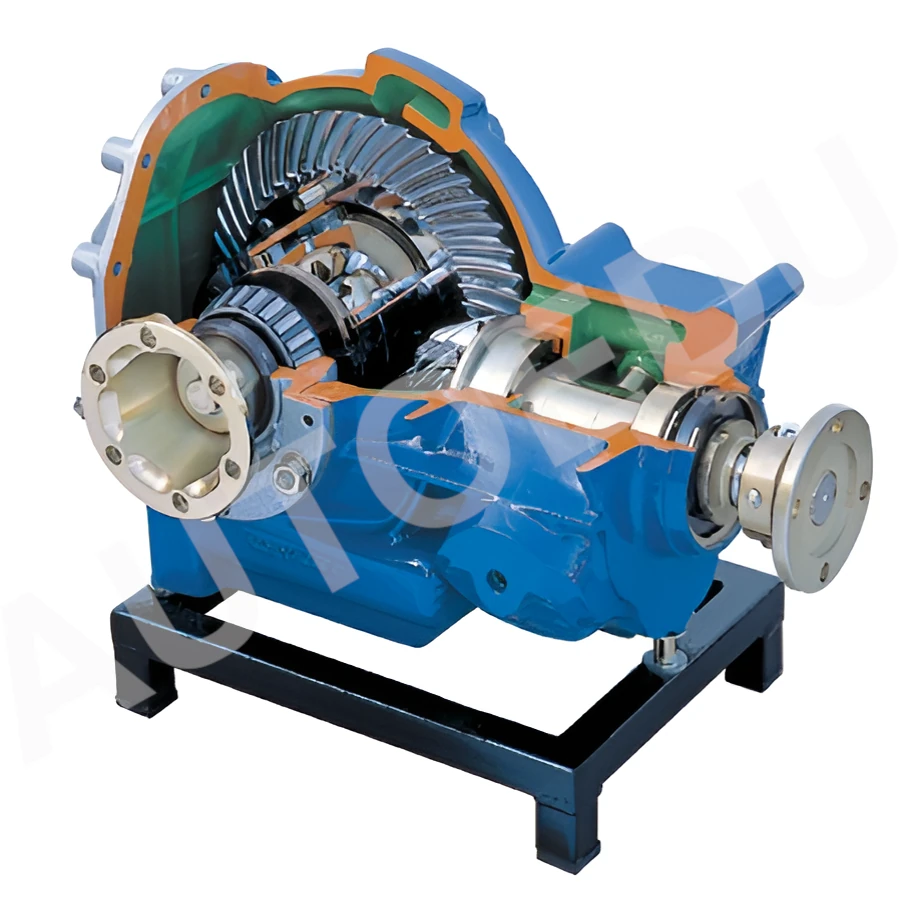

Static cutaway model of a crown and pinion differential group mounted on a fixed base. The trainer provides a clear, static view of the internal gear arrangement including the drive pinion, ring gear, side gears, and spider gears. Mechanism is sectioned to show internal layout and working principle of torque distribution and rotation differential between driven wheels. Designed for manual demonstration without power input. Provides foundational understanding of automotive differential systems.

• Type: Static cutaway trainer.
• System: Crown and pinion differential gear group.
• Operation: Manual demonstration only.
• Mounting: Rigid base platform.
• Weight: 8 kg (17.64 lbs).
• Dimensions: 300 x 400 x 260 mm (11.81 x 15.75 x 10.24 in).
• Product number: AE411281S

• Study the mechanical function of a crown and pinion gear set.
• Understand how torque is transferred from the drive shaft to the wheels.
• Analyze differential behavior during cornering conditions.
• Identify internal components: pinion gear, ring gear, side gears, spider gears, differential casing.
• Learn how rotational speed differences are managed between wheels.
• Develop skills for visual inspection and static analysis of differential units.
• Understand gear contact patterns and backlash settings relevant to automotive mechanics.
• Gain theoretical knowledge essential for diagnosing drivetrain issues in rear-wheel drive systems.

• Effective visual aid for teaching drivetrain fundamentals.
• Easy to transport and place on any classroom table or bench.
• Safe, static operation eliminates any moving hazards during instruction.
• Clearly shows gear arrangement and mesh alignment without external distractions.
• Supports automotive education in topics related to vehicle propulsion and mechanical power transfer.
• Compact format suitable for repeated demonstration without wear.
• Enhances theoretical lessons with physical component display.
