Fiat petrol engine with carburetor + gearbox cutaway Educational Trainer AE35220CE

Fiat petrol engine with carburetor + gearbox cutaway Educational Trainer AE35220CE

AutoEDU
Product number: AE35220CE
ASE category: A1
  • Fiat 4-cylinder petrol (gasoline) engine with sectioned cutaway view.
  • Overhead camshaft (OHC) with visible timing belt distribution.
  • Manual 5-speed gearbox with reverse and integrated differential.
  • Operates on 220V (110V US) electric motor at reduced RPM.
  • Carburetor-based air-fuel intake system.
  • Includes electronic ignition system.
Request a quote
Check our catalog and product data sheet

Description

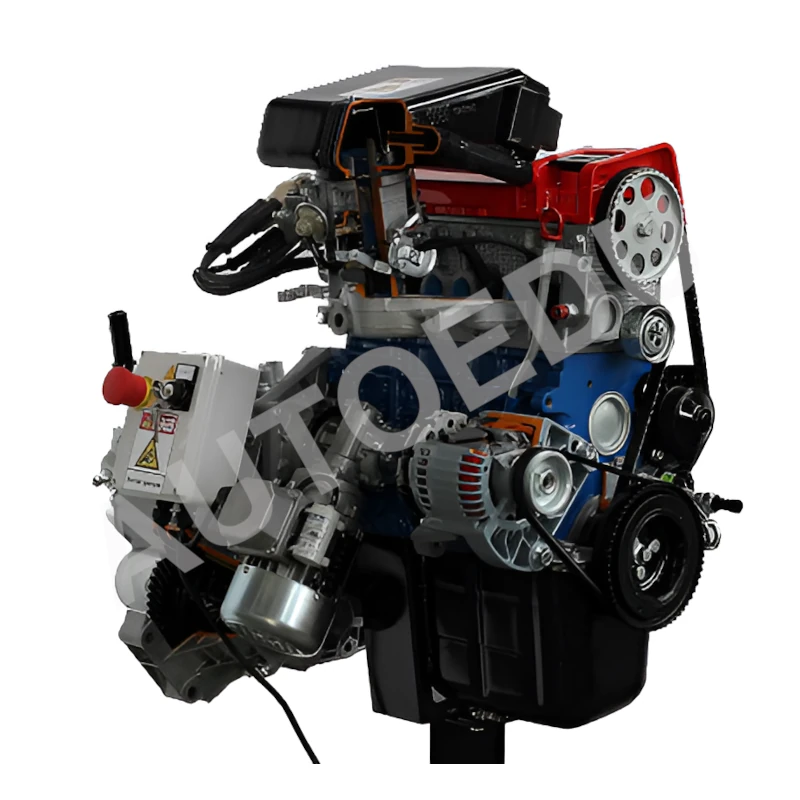

Cutaway educational trainer with a Fiat 4-cylinder petrol (gasoline) engine and 5-speed manual gearbox. Equipped with an overhead camshaft, electronic ignition system, carburetor fuel system, and timing belt distribution. The trainer operates on 220V (110V US) electrical power and runs at a reduced speed for visual learning of internal mechanical movements. The gearbox features 5 forward speeds and reverse, including a differential. Components are sectioned for visibility and observation.

Specifications

  • Engine type: Fiat 4-cylinder, petrol (gasoline).
  • Fuel system: Carburetor.
  • Ignition: Electronic.
  • Valve control: Overhead camshaft (OHC).
  • Displacement: 1000–1300 cc.
  • Gearbox: 5 forward speeds + reverse, with differential.
  • Operating voltage: 220 V (110V US)).
  • Weight: 90 kg (198 lbs).
  • Dimensions: 1200 x 700 x 1000 mm (47.24 x 27.56 x 39.37 in).
  • Product number: AE35220CE

Value for Students

  • Understand 4-stroke petrol (gasoline) engine operation: intake, compression, power, exhaust cycles.
  • Observe overhead camshaft mechanism with timing belt control.
  • Study fuel-air mixing process via carburetor system.
  • Identify ignition system components including spark plugs and electronic ignition module.
  • Analyze gear shifting mechanisms and gear ratio transitions in 5-speed manual gearbox.
  • Learn differential function for torque distribution to drive wheels.
  • Practice identifying engine components: pistons, crankshaft, valves, camshaft, cylinder block.
  • Understand mechanical synchronization between engine and transmission.
  • Examine power transmission from engine to gearbox under static display.

Value for Instructors

  • Safe demonstration of internal engine and gearbox movement at low speed.
  • Clear visual access to engine structure and mechanical synchronization.
  • Ideal for basic and intermediate automotive learning programs.
  • Supports teaching of engine mechanics, ignition, fuel systems, and manual gearboxes.
  • Durable construction suitable for repeated classroom use.
  • Effective automotive education tool for practical understanding of mechanical principles.
