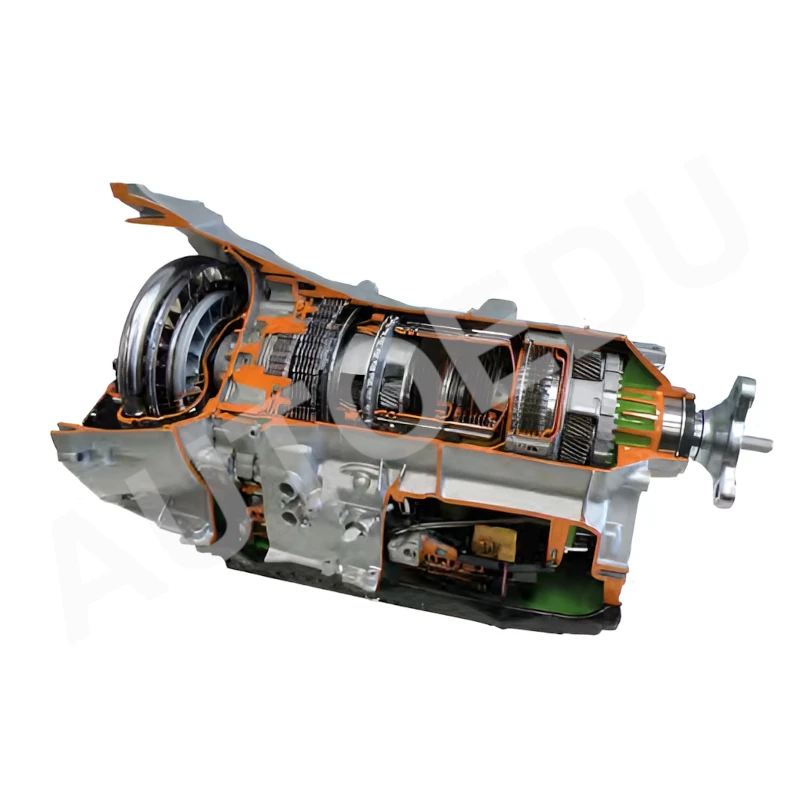

Automatic gearbox 6 speeds + reverse cutaway AE411063/6M

Automotive training equipment designed for examination of a 6-speed automatic gearbox with reverse. Trainer includes visible torque converter with lock-up clutch, internal planetary gear sets, brake band and actuating piston, oil pump, couplings, and valves. Entire assembly is mounted for instructional use and demonstration of automatic transmission functionality. Ideal for understanding power flow, hydraulic control, and gear shifting principles in automotive education.

• Transmission type: automatic, 6 speeds + reverse.
• Key components: torque converter, lock-up clutch, planetary gear sets, couplings, oil pump, brake band, actuating piston, valves.
• Frame: metal support frame with fixed base.
• Weight: 80 kg (176 lbs).
• Dimensions: 900 x 500 x 700 mm (35.43 x 19.69 x 27.56 in).
• Product description: AE411063/6M

• Identify torque converter structure and function, including lock-up clutch operation.
• Observe internal planetary gear set arrangement and learn gear ratio calculation.
• Understand hydraulic control through valve and brake band piston interaction.
• Study oil pump role in pressure regulation and fluid distribution.
• Practice diagnostics by analyzing mechanical components and flow paths.
• Visualize engagement and release of brake bands during gear change cycles.
• Explore gear shifting sequences in 6-speed automatic gearbox plus reverse gear.
• Learn transmission input/output correlation for various driving modes.

• Provides hands-on demonstration of automatic gearbox mechanics.
• Enables explanation of complex gear shifting with visible components.
• Supports structured lessons on hydraulic systems in automotive transmissions.
• Simplifies student learning using clear cutaway views of internal parts.
• Suitable for all levels of automotive education classes.
• Enhances theoretical knowledge with real mechanical observation.
